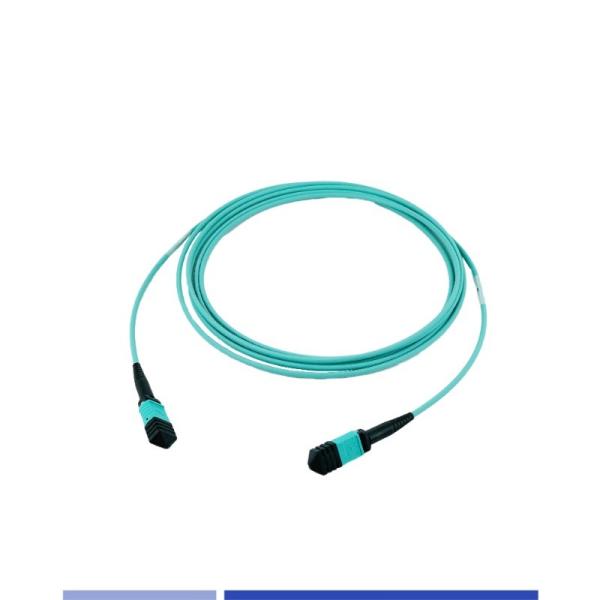

24 Strand MTP® Fiber Optic Patch Cord Female OM3 Multimode Patch Cable 3m Type A OFNP

  • 1
  • 2
  • 3

Place of Origin : Made in China

Brand Name : GoreLink

Certification : RoHS,REACH

MOQ : 1 Piece

Packaging Details : Neutral Bag/GoreLink Bag

Delivery Time : 1-3 Working days

Payment Terms : T/T,Paypal,Western Union

Model Number : G273-P3324A-3

Product : MTP® Trunk Cable

Fiber Count : 24 Fiber

Connector : MTP®-24(Female)

Fiber Mode : Multimode OM4

Type : OM3

Length : 1m

Jacket Material : OFNP

Insertion loss : ≤0.75dB

Return loss : ≥30dB

Wavelength : 850nm,1300nm

Contact Now

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Multimode OM3 50/125um

Fiber Count

24 Fibers

Connector A

MTP24 Female

Connector B

MTP24 Female

Wavelength

850nm/1300nm

Polish Way

UPC

Cable Diameter

3.0mm

Cable Color

Aqua

Cable Jacket

OFNP

Method

Type A

Cable length

As per the order request

OPTICAL PERFORMANCE

Insertion Loss(IL)

≤0.75 dB (Standard loss)

Return Loss(RL)

≥30dB

40/100G Ethernet Distance

150m @850nm

10G Ethernet Distance

400m @850nm

Operating Temperature

-10 to +70℃

Storage Temperature

0 to +60℃

24 Strand MTP® Fiber Optic Patch Cord Female OM3 Multimode Patch Cable 3m Type A OFNP

Ordering Information

PART NO.

DESCRIPTION

G273-P3324A-1

Fiber Optic Cable,24Core,MTP/Female to MTP/Female, MM-50/125,OM3, OFNP, Aqua,1Mtr,3.0mm,Type A

G273-P3324A-2

Fiber Optic Cable,24Core,MTP/Female to MTP/Female, MM-50/125,OM3, OFNP, Aqua,2Mtr,3.0mm,Type A

G273-P3324A-3

Fiber Optic Cable,24Core,MTP/Female to MTP/Female, MM-50/125,OM3, OFNP, Aqua,3Mtr,3.0mm,Type A

G273-P3324A-5

Fiber Optic Cable,24Core,MTP/Female to MTP/Female, MM-50/125,OM3, OFNP, Aqua,5Mtr,3.0mm,Type A

G273-P3324A-7

Fiber Optic Cable,24Core,MTP/Female to MTP/Female, MM-50/125,OM3, OFNP, Aqua,7Mtr,3.0mm,Type A

G273-P3324A-10

Fiber Optic Cable,24Core,MTP/Female to MTP/Female, MM-50/125,OM3, OFNP, Aqua,10Mtr,3.0mm,Type A

* Customized
